ELJPA180KF Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Inductors

Case Package:

1210

Description:

1210 18uH ±10% 205mA

Pictures:

3D Model

Symbol

Footprint

Pinout

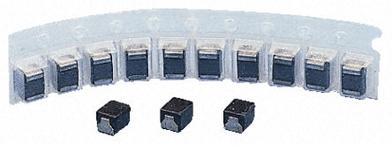

Product Pictures

ELJPA180KF Datasheet PDF (15 Pages)

View Datasheet

Click page to view the detail

ELJPA180KF Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Current Rating

205 mA

Capacitance Tolerance

±10 %

Case/Package

1210

Inductance

18 μH

Self Resonant Frequency

17.0 MHz

Q-Factor

Part Family

ELJPA

Shielding

Inductance Tolerance

±10 %

DC Resistance (DCR)

900 mΩ

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-20 ℃

Resistance (DC Max)

900 mΩ

ELJPA180KF Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Cut Tape (CT)

Size-Length

3.2 mm

Size-Width

2.5 mm

Size-Height

2.2 mm

ELJPA180KF Environmental

ELJPA180KF Function Overview

ELJPA180KF Documents

ELJPA180KF Product Catalog

Panasonic

15 Pages / 1.36 MByte

ELJPA180 Documents

ELJ-PA180KF Datasheet PDF

Panasonic

Inductor Power Chip Molded Wirewound 18uH 10% 2.52MHz 15Q-Factor Ferrite 205mA 900Mohm DCR 1210 T/R

ELJPA180KF Datasheet PDF

Panasonic

1210 18uH ±10% 205mA
