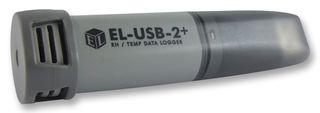

EL-USB-2+ Datasheet PDF - Lascar

●This standalone data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC"s USB port and running the purpose designed downloadable software under Windows 2000, XP, Vista, 7 & 8\. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for 1 year.

● Higher accuracy sensor when compared with the EL-USB-2

● 0 to 100%RH measurement range

● -35 to +80°C (-31 to +176°F) measurement range

● Dew point indication via Windows control software

● USB interface for set-up and data download

● User-programmable alarm thresholds for %RH & T

● Status indication via red and green LEDs

● Environmental protection to IP67
