ERJ8BWFR091V Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Chip SMD Resistors

Case Package:

1206

Description:

1206 0.091Ω ±1% ±100ppm/℃

Pictures:

3D Model

Symbol

Footprint

Pinout

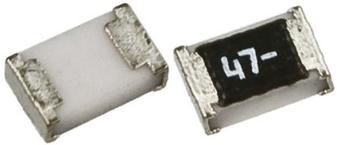

Product Pictures

Documentation:

ERJ8BWFR091V Datasheet (4 Pages)

ERJ8BWFR091V Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

ERJ8BWFR091V Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Capacitance Tolerance

±1 %

Case/Package (SI)

3216

Case/Package

1206

Power Rating

1 W

Part Family

ERJ8BW

Resistance

91 mΩ

Resistance Tolerance

±1 %

Operating Temperature (Max)

155 ℃

Operating Temperature (Min)

-55 ℃

View Datasheet >

ERJ8BWFR091V Size & Package

TYPE

DESCRIPTION

Size-Length

3.2 mm

Size-Width

1.6 mm

Size-Height

0.6 mm

Temperature Coefficient

±100 ppm/℃

Minimum Packing Quantity

5000

View Datasheet >

ERJ8BWFR091V Environmental

ERJ8BWFR091V Function Overview

ERJ8BWFR091V Documents

ERJ8BWFR091V Datasheet

Panasonic

4 Pages / 0.09 MByte

ERJ8BWFR091 Documents

ERJ-8BWFR091V Datasheet PDF

Panasonic

Res Thick Film 1206 0.091Ω 1% 1W ±100ppm/℃ Molded SMD SMD Punched Carrier T/R

ERJ8BWFR091V Datasheet PDF

Panasonic

1206 0.091Ω ±1% ±100ppm/℃
