ESQ-105-12-G-D Datasheet PDF - Samtec

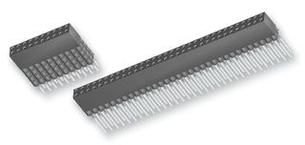

●The ESQ-105-12-G-D is a 10-pole 2-row 2.54mm Elevated Socket Strip with 20µinch (0.51µm) gold-plated phosphor bronze contacts and glass filled polyester insulator. The ESQ series socket strip is compatible with DW, EW, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, LCW, MTLW, MTSW, PHT, TSM, TSS, TSSH, TSW, ZSS and ZW series connectors.

● Orderable with single/dual/triple rows (-S/-D/-T option)

● Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation

● High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts

● Contact material is phosphor bronze

● Black glass filled polyester insulator material

● Tiger Buy contact system

● Complies with UL E111594 and CSA 090871_0_000 standards
