EXCELDR25C Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Power Supply Filters

Description:

Ferrite Beads Radial 80Ω 100MHz 7A 10mOhm DCR T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

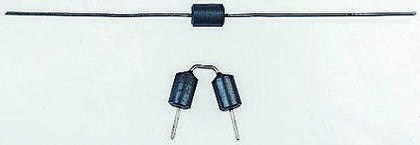

Product Pictures

Documentation:

EXCELDR25C Datasheet (4 Pages)

EXCELDR25C Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

EXCELDR25C Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Frequency

100 MHz

Number of Pins

2 Pin

Resistance

10.0 mΩ

Current Rating (Max)

7 A

Current Rating (DC)

7 A

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-25 ℃

Resistance (DC Max)

0.01 Ω

View Datasheet >

EXCELDR25C Environmental

EXCELDR25C Documents

EXCELDR25C Datasheet

Panasonic

4 Pages / 0.1 MByte

EXCELDR25C Other Datasheet PDF

Panasonic

4 Pages / 0.1 MByte

EXCELDR25C Notice File

Panasonic

1 Pages / 0.03 MByte

EXCELDR25 Documents

EXC-ELDR25C Datasheet PDF

Panasonic

Ferrite Beads Radial 80Ω 100MHz 7A 10mOhm DCR T/R

EXC-ELDR25V Datasheet PDF

Panasonic

FERRITE BEAD 80Ω RADIAL 1LN

EXCELDR25C Datasheet PDF

Panasonic

Ferrite Beads Radial 80Ω 100MHz 7A 10mOhm DCR T/R
