Part Datasheet Search > FET Drivers > Fairchild > FAN3121CMPX Datasheet PDF
FAN3121CMPX
$ 1

FAN3121CMPX Datasheet PDF - Fairchild

Manufacturer:
Fairchild
Category:
FET Drivers
Case Package:
MLP-8
Description:
MOSFET DRVR 11.4A 1Out Lo Side Inv 8Pin MLP EP T/R
Pictures:
3D Model
Symbol
Footprint
Pinout

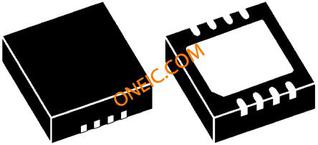

Product Pictures
Documentation:
FAN3121CMPX Datasheet (21 Pages)
Pinout Diagram on1 Page3 PageHot
Package Outline Dimension on2 Page19 Page20 Page
Package Footprint Pad Layout on20 Page
Part Numbering System on2 Page21 Page
FAN3121CMPX Datasheet PDF (21 Pages)
View Datasheet
Click page to view the detail

FAN3121CMPX Specifications

TYPE
DESCRIPTION
Mounting Style
Surface Mount
Number of Pins
8 Pin
Supply Voltage (DC)
4.50V (min)
Case/Package
MLP-8
Rise/Fall Time
23ns, 19ns
Number of Outputs
1 Output
Output Current
11.4 A
Supply Current
0.85 mA
Rise Time
23 ns
Fall Time
19 ns
Fall Time (Max)
27 ns
Fall Time (Max)
29 ns
Operating Temperature (Max)
125 ℃
Operating Temperature (Min)
-40 ℃
Supply Voltage
4.5V ~ 18V
Supply Voltage (Max)
18 V
Supply Voltage (Min)
4.5 V
View Datasheet >

FAN3121CMPX Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tape & Reel (TR)
Size-Length
3 mm
Size-Width
3 mm
Size-Height
0.75 mm
Operating Temperature
-40℃ ~ 125℃
View Datasheet >

FAN3121CMPX Documents

FAN3121CMPX Datasheet
Fairchild
21 Pages / 3.27 MByte
FAN3121CMPX Other Datasheet PDF
Fairchild
22 Pages / 1.3 MByte

FAN3121 Documents

FAN3121 Datasheet PDF
Fairchild
Single 9A High-Speed, Low-Side Gate Driver
FAN3121TMX Datasheet PDF
Fairchild
Fairchild Semiconductor FAN3121TMX, MOSFET Power Driver, 10.6A, 11.4A Full Bridge, 4.5 → 18V, Inverting
FAN3121TMPX Datasheet PDF
Fairchild
MOSFET DRVR 11.4A 1Out Lo Side Inv 8Pin MLP EP T/R
FAN3121CMX Datasheet PDF
Fairchild
MOSFET DRVR 11.4A 1Out Lo Side Inv 8Pin SOIC N T/R
FAN3121CMPX Datasheet PDF
Fairchild
MOSFET DRVR 11.4A 1Out Lo Side Inv 8Pin MLP EP T/R
FAN3121TMX Datasheet PDF
ON Semiconductor
Driver 11.4A 1Out Lo Side Inv 8Pin SOIC N T/R
FAN3121CMX Datasheet PDF
ON Semiconductor
CMOS input, single inverting output, peak 11.4A sink, 10.6A source current Low-Side Gate Driver
FAN3121CMX_F085 Datasheet PDF
Fairchild
MOSFET DRVR 11.4A 1Out High Speed/Lo Side Inv 8Pin SOIC T/R
FAN3121TMX_F085 Datasheet PDF
Fairchild
MOSFET DRVR 11.4A 1Out Lo Side Inv 8Pin SOIC T/R
FAN3121CMPX Datasheet PDF
ON Semiconductor
Driver 11.4A 1Out Low Side Inv 8Pin MLP EP T/R
