FJN3303RTA
$ 0.027

FJN3303RTA Datasheet PDF - Fairchild

Manufacturer:
Fairchild
Category:
BJTs
Case Package:
TO-226-3
Description:
Trans Digital BJT NPN 50V 100mA 3Pin TO-92 Ammo
Pictures:
3D Model
Symbol
Footprint
Pinout

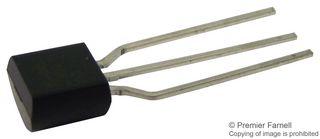

Product Pictures
Documentation:
FJN3303RTA Datasheet (10 Pages)
Package Outline Dimension on1 Page
FJN3303RTA Datasheet PDF (10 Pages)
View Datasheet
Click page to view the detail

FJN3303RTA Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
3 Pin
Voltage Rating (DC)
50.0 V
Current Rating
100 mA
Case/Package
TO-226-3
Polarity
NPN
Power Dissipation
0.3 W
Breakdown Voltage (Collector to Emitter)
50 V
Continuous Collector Current
100mA
hFE Min
56 @5mA, 5V
Input Power (Max)
300 mW
Operating Temperature (Max)
150 ℃
Operating Temperature (Min)
-55 ℃
Gain Bandwidth
250 MHz
Power Dissipation (Max)
300 mW
View Datasheet >

FJN3303RTA Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tape
Size-Length
5.2 mm
Size-Width
4.19 mm
Size-Height
5.33 mm
View Datasheet >

FJN3303RTA Documents

FJN3303RTA Datasheet
Fairchild
10 Pages / 0.09 MByte
FJN3303RTA Other Datasheet PDF
Fairchild
7 Pages / 0.31 MByte
FJN3303RTA Drawing Diagrams
Fairchild
1 Pages / 0.01 MByte
