FPAM30LH60 Datasheet PDF - Fairchild

Manufacturer:

Fairchild

Category:

Power Management

Case Package:

PowerDIP-32

Description:

Trans IGBT Module N-CH 600V 30A 107000mW 32Pin SPM32-EA Rail

Pictures:

3D Model

Symbol

Footprint

Pinout

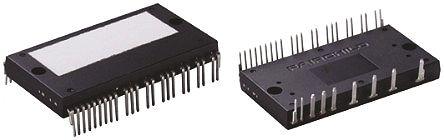

Product Pictures

FPAM30LH60 Datasheet PDF (11 Pages)

View Datasheet

Click page to view the detail

FPAM30LH60 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

32 Pin

Case/Package

PowerDIP-32

Power Dissipation

107000 mW

Isolation Voltage

2500 Vrms

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

107000 mW

FPAM30LH60 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Rail, Tube

Size-Length

60.5 mm

Size-Width

31.5 mm

Size-Height

7.3 mm

FPAM30LH60 Environmental

FPAM30LH60 Documents

FPAM30LH60 Other Datasheet PDF

Fairchild

11 Pages / 0.55 MByte

FPAM30 Documents

FPAM30LH60 Datasheet PDF

Fairchild

Trans IGBT Module N-CH 600V 30A 107000mW 32Pin SPM32-EA Rail

FPAM30LH60 Datasheet PDF

ON Semiconductor

PFC Intelligent Power Module, 600V, 30A
