FPF2313MPX
$ 0.46

FPF2313MPX Datasheet PDF - Fairchild

Manufacturer:
Fairchild
Category:
Hot Swap & Power Distribution
Case Package:
MLP-8
Description:
USB Power SW Dual 1.8V to 5.5V 0.45A to 0.55A 8Pin MLP EP T/R
Pictures:
3D Model
Symbol
Footprint
Pinout

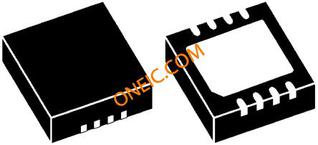

Product Pictures
Documentation:
FPF2313MPX Datasheet (17 Pages)
Pinout Diagram on3 PageHot
Package Outline Dimension on16 Page
Package Footprint Pad Layout on14 Page16 Page
Part Numbering System on1 Page
FPF2313MPX Datasheet PDF (17 Pages)
View Datasheet
Click page to view the detail

FPF2313MPX Specifications

TYPE
DESCRIPTION
Mounting Style
Surface Mount
Number of Pins
8 Pin
Case/Package
MLP-8
Number of Outputs
2 Output
Power Dissipation
2200 mW
Input Voltage (Max)
5.5 V
Input Voltage (Min)
1.8 V
Output Current (Max)
600 mA
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Power Dissipation (Max)
2200 mW
Input Voltage
1.8V ~ 5.5V
View Datasheet >

FPF2313MPX Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tape & Reel (TR)
Size-Length
3 mm
Size-Width
3 mm
Size-Height
0.75 mm
Operating Temperature
-40℃ ~ 85℃
View Datasheet >

FPF2313MPX Documents

FPF2313MPX Datasheet
Fairchild
17 Pages / 1.04 MByte
FPF2313MPX Other Datasheet PDF
Fairchild
2 Pages / 0.13 MByte

FPF2313 Documents

FPF2313 Datasheet PDF
ON Semiconductor
Dual Output Adjustable Current Limit Switch
FPF2313 Datasheet PDF
Fairchild
Dual-Output Adjustable Current Limit Switch
FPF2313MPX Datasheet PDF
Fairchild
USB Power SW Dual 1.8V to 5.5V 0.45A to 0.55A 8Pin MLP EP T/R
FPF2313LMPX Datasheet PDF
Fairchild
USB Power SW Dual 5.5V 0.45A to 0.55A 8Pin MLP EP T/R
FPF2313LMPX Datasheet PDF
ON Semiconductor
Dual 5.5V 0.45A to 0.55A 8Pin MLP EP T/R
FPF2313MPX Datasheet PDF
ON Semiconductor
Dual 5.5V 0.45A to 0.55A 8Pin MLP EP T/R
FPF2313L Datasheet PDF
ON Semiconductor
Dual Output Adjustable Current Limit Switch
FPF2313L Datasheet PDF
Fairchild
Dual-Output Adjustable Current Limit Switch
