FTR-107-03-S-S-TR Datasheet PDF - Samtec

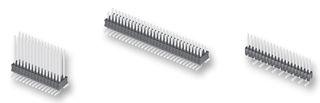

●The FTR series from Samtec are surface mount micro terminal strip headers. These are unshrouded headers with 0.018" (0.46mm) square post and mates with Samtec RSM, SMS and SLM series of connectors.

● Single row terminal strip header

● Pitch spacing is 1.27mm (2 to 40 contacts per row) with vertical orientation

● High operating temperature range of -55°C to 125°C for 30µ" gold plated contacts

● Black liquid crystal polymer insulator material

● Contact material is phosphor bronze

● Complies with UL E111594 standard
