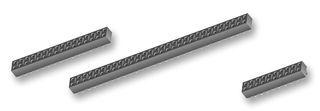

HLE-106-02-L-DV-PE
$ 4.102
HLE-106-02-L-DV-PE Datasheet PDF (1 Pages)
View Datasheet
Click page to view the detail

HLE-106-02-L-DV-PE Specifications

TYPE
DESCRIPTION
Number of Contacts
12 Contact
Gender
Female
Mounting Style
Through Hole
Contact Plating
Gold
Number of Rows
2 Row

HLE-106-02-L-DV-PE Documents

Samtec
1 Pages / 0.63 MByte
Samtec
1 Pages / 0.8 MByte
Samtec
2 Pages / 0.24 MByte
