HLMP1700 Datasheet PDF - Everlight Electronics

Manufacturer:

Everlight Electronics

Category:

Based LEDs

Case Package:

T-100

Description:

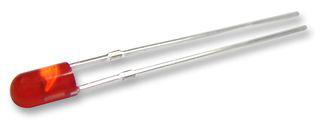

Red 3mm 50° Tinted Diffused 2mcd 1.8V Solid State LED Lamp Through Hole

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

HLMP1700 Datasheet (4 Pages)

HLMP1700 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

HLMP1700 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-100

Forward Voltage

1.8 V

Wavelength

635 nm

Luminous Intensity

2 mcd

Viewing Angle

50°

Peak Wavelength

635 nm

Power Dissipation

27 W

Test Current

2 mA

Forward Current

2 mA

Maximum Forward Voltage (Max)

2.2 V

Forward Current (Max)

7.5 mA

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-55 ℃

Power Dissipation (Max)

27 mW

View Datasheet >

HLMP1700 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Color

Red

Size-Height

6.30 mm

View Datasheet >

HLMP1700 Environmental

HLMP1700 Function Overview

HLMP1700 Documents

HLMP1700 Datasheet

Everlight Electronics

4 Pages / 0.24 MByte

Part Datasheet PDF Search
