Part Datasheet Search > LED Character Displays & Modules > Broadcom > HLMP-2785-EF000 Datasheet PDF
HLMP-2785-EF000
Part 3D Model
$ 4.181

HLMP-2785-EF000 Datasheet PDF - Broadcom

Manufacturer:
Broadcom
Category:
LED Character Displays & Modules
Case Package:
PDIP
Description:
LED Uni-Color Yellow 583nm 16Pin PDIP
Pictures:
3D Model
Symbol
Footprint
Pinout

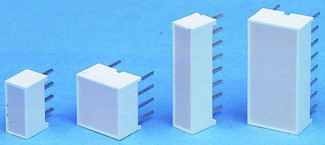

Product Pictures
Documentation:
HLMP-2785-EF000 Datasheet (16 Pages)
Package Outline Dimension on4 Page
Part Numbering System on3 Page
HLMP-2785-EF000 Datasheet PDF (16 Pages)
View Datasheet
Click page to view the detail

HLMP-2785-EF000 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
16 Pin
Case/Package
PDIP
Forward Voltage
2.1 V
Wavelength
585 nm
Peak Wavelength
583 nm
Power Dissipation
85 mW
Forward Current
20 mA
Maximum Forward Voltage (Max)
2.6 V
Forward Current (Max)
25 mA
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Power Dissipation (Max)
85 mW
Voltage Rating
2.1 V
View Datasheet >

HLMP-2785-EF000 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bulk
Color
Yellow
Size-Length
19.05 mm
Size-Width
8.89 mm
Size-Height
6.22 mm
Operating Temperature
-40℃ ~ 85℃
View Datasheet >

HLMP-2785-EF000 Documents

HLMP-2785-EF000 Datasheet
Broadcom
16 Pages / 0.4 MByte
HLMP-2785-EF000 Other Datasheet PDF
Broadcom
3 Pages / 0.05 MByte

HLMP2785 Documents

HLMP-2785 Datasheet PDF
AVAGO Technologies
LED Uni-Color Yellow 583nm 16Pin DIP
HLMP-2785 Datasheet PDF
Broadcom
BROADCOM LIMITED HLMP-2785 LED Bar Graph Array, Yellow, 20mA, 2.1V, 70mcd, 8 LED"s, 8.89mm x 19.05mm
HLMP2785 Datasheet PDF
Everlight Electronics
LED Uni-Color Yellow 585nm 16Pin DIP
HLMP-2785 Datasheet PDF
HP
LED LIGHT BARS
HLMP-2785 Datasheet PDF
Everlight Electronics
LED LIGHT BARS
HLMP2785 Datasheet PDF
Fairchild
LED LT BAR YELLOW 8LED DIP
HLMP-2785 Datasheet PDF
Fairchild
LED LIGHT BARS YELLOW
HLMP-2785 Datasheet PDF
QT Optoelectronics
LED LIGHT BARS
HLMP-2785-EF000 Datasheet PDF
Broadcom
LED Uni-Color Yellow 583nm 16Pin PDIP
HLMP-2785-EF000 Datasheet PDF
AVAGO Technologies
LED Uni-Color Yellow 583nm 16Pin PDIP
