HR25-7TR-8SA(73) Datasheet PDF - Hirose Electric

Manufacturer:

Hirose Electric

Category:

Circular Connector

Description:

Conn Circular SKT 8POS Solder ST Thru-Hole 8 Terminal 1Port

Pictures:

3D Model

Symbol

Footprint

Pinout

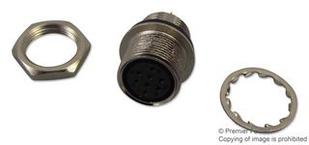

Product Pictures

Documentation:

HR25-7TR-8SA(73) Datasheet (14 Pages)

HR25-7TR-8SA(73) Datasheet PDF (14 Pages)

View Datasheet

Click page to view the detail

HR25-7TR-8SA(73) Specifications

TYPE

DESCRIPTION

Number of Contacts

8 Contact

Gender

Female

Mounting Style

Through Hole

Contact Plating

Gold

Current Rating

1 A

Insulation Resistance

1000 MΩ

Number of Positions

8 Position

Number of Mating Cycles

1000 Cycle

Current Rating (Max)

1 A

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-25 ℃

Voltage Rating

30VAC, 42VDC

Maximum Contact Resistance (Max)

30 mΩ
