IDH04G65C5 Datasheet PDF - Infineon

Manufacturer:

Infineon

Category:

TVS Diodes

Case Package:

TO-220-2

Description:

Silicon Carbide Schottky Diode, thinQ 5G 650V Series, Single, 650V, 4A, 7NC, TO-220

Pictures:

3D Model

Symbol

Footprint

Pinout

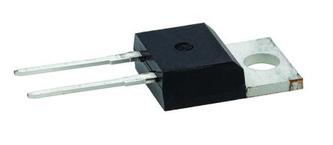

Product Pictures

Documentation:

IDH04G65C5 Datasheet (11 Pages)

Package Outline Dimension on9 Page

IDH04G65C5 Datasheet PDF (11 Pages)

View Datasheet

Click page to view the detail

IDH04G65C5 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

TO-220-2

Forward Voltage

1.7V @4A

Power Dissipation

48 W

Thermal Resistance

3.1℃/W (RθJC)

Reverse recovery time

0 ns

Forward Current

4 A

Max Forward Surge Current (Ifsm)

38 A

Maximum Forward Voltage (Max)

2.1 V

Forward Current (Max)

4 A

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-55 ℃

Junction Temperature (Max)

175 ℃

Power Dissipation (Max)

48000 mW

View Datasheet >

IDH04G65C5 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

10.2 mm

Size-Width

4.5 mm

Size-Height

15.95 mm

View Datasheet >
