IDH08SG60C Datasheet PDF - Infineon

Manufacturer:

Infineon

Category:

TVS Diodes

Case Package:

TO-220-2

Description:

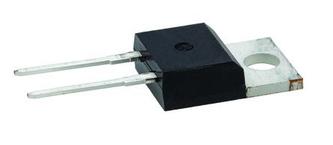

INFINEON IDH08SG60C Silicon Carbide Schottky Diode, SIC, thinQ 3G 600V Series, Single, 600V, 8A, 12NC, TO-220

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

IDH08SG60C Datasheet (2 Pages)

IDH08SG60C Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

IDH08SG60C Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

TO-220-2

Power Rating

100 W

Load Current

8 A

Forward Voltage

2.1V @8A

Power Dissipation

100 W

Thermal Resistance

1.5℃/W (RθJC)

Reverse recovery time

0 ns

Forward Current

8 A

Max Forward Surge Current (Ifsm)

350 A

Maximum Forward Voltage (Max)

2.1 V

Forward Current (Max)

8 A

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-55 ℃

Junction Temperature (Max)

175 ℃

Power Dissipation (Max)

100000 mW

View Datasheet >

IDH08SG60C Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

10.2 mm

Size-Width

4.5 mm

Size-Height

15.95 mm

Operating Temperature

-55℃ ~ 175℃

View Datasheet >

IDH08SG60C Environmental

IDH08SG60C Export Classifications

IDH08SG60C Documents

IDH08SG60C Datasheet

Infineon

2 Pages / 0.07 MByte

IDH08SG60 Documents

IDH08SG60C Datasheet PDF

Infineon

INFINEON IDH08SG60C Silicon Carbide Schottky Diode, SIC, thinQ 3G 600V Series, Single, 600V, 8A, 12NC, TO-220

IDH08SG60CXKSA1 Datasheet PDF

Infineon

INFINEON IDH08SG60CXKSA1 Silicon Carbide Schottky Diode, SIC, thinQ 3G 600V Series, Single, 600V, 8A, 12NC, TO-220

IDH08SG60CXK Datasheet PDF

Infineon

Diode Schottky 600V 8A 2Pin(2+Tab) TO-220
