IDP30E120 Datasheet PDF - Infineon

Manufacturer:

Infineon

Category:

Schottky Diodes

Case Package:

TO-220-2

Description:

Small Signal Diode, Single, 1.2kV, 50A, 2.15V, 102A

Pictures:

3D Model

Symbol

Footprint

Pinout

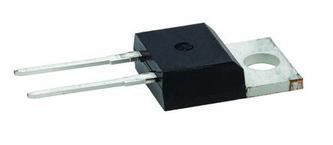

Product Pictures

Documentation:

IDP30E120 Datasheet (8 Pages)

Part Numbering System on1 Page

IDP30E120 Datasheet PDF (8 Pages)

View Datasheet

Click page to view the detail

IDP30E120 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

TO-220-2

Number of Positions

2 Position

Forward Voltage

2.15 V

Power Dissipation

138 W

Reverse recovery time

243 ns

Forward Current

50 A

Max Forward Surge Current (Ifsm)

102 A

Maximum Forward Voltage (Max)

2.15 V

Forward Current (Max)

50 A

Operating Temperature (Max)

150 ℃

Operating Temperature (Min)

-55 ℃

Power Dissipation (Max)

138000 mW

View Datasheet >

IDP30E120 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Rail, Tube

Size-Length

10.2 mm

Size-Width

4.5 mm

Size-Height

9.2 mm

Operating Temperature

-55℃ ~ 150℃

View Datasheet >
