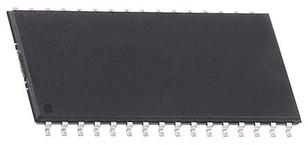

IS61C5128AS-25QLI
Part 3D Model
$ 5.823

IS61C5128AS-25QLI Datasheet PDF - Integrated Silicon Solution(ISSI)

Manufacturer:
Integrated Silicon Solution(ISSI)
Category:
RAM Memory
Case Package:
SOP-32
Description:
4Mb, High-Speed, Low Power, Async, 512K x 8, 25ns, 5V, 32Pin SOP (450 mil), RoHS
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
IS61C5128AS-25QLI User Reference Manual Guide (2 Pages)
IS61C5128AS-25QLI Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

IS61C5128AS-25QLI Specifications

TYPE
DESCRIPTION
Mounting Style
Surface Mount
Number of Pins
32 Pin
Operating Voltage
5 V
Case/Package
SOP-32
Number of Bits
8 Bit
Access Time
25 ns
Access Time(Max)
25 ns
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Supply Voltage
4.5V ~ 5.5V

IS61C5128AS-25QLI Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tray
Size-Length
20.75 mm
Size-Width
11.43 mm
Size-Height
2.75 mm
Operating Temperature
-40℃ ~ 85℃

IS61C5128AS-25QLI Documents

IS61C5128AS-25QLI User Reference Manual Guide
Integrated Silicon Solution(ISSI)
2 Pages / 0.04 MByte
IS61C5128AS-25QLI Other Datasheet PDF
Integrated Silicon Solution(ISSI)
39 Pages / 1.04 MByte
IS61C5128AS-25QLI Features Description Parametrics
Integrated Silicon Solution(ISSI)
29 Pages / 0.73 MByte

IS61C5128AS25 Documents

IS61C5128AS-25QLI Datasheet PDF
Integrated Silicon Solution(ISSI)
4Mb, High-Speed, Low Power, Async, 512K x 8, 25ns, 5V, 32Pin SOP (450 mil), RoHS
IS61C5128AS-25TLI Datasheet PDF
Integrated Silicon Solution(ISSI)
SRAM Chip Async Single 5V 4M-bit 512K x 8 25ns 32Pin TSOP-II
IS61C5128AS-25QLI-TR Datasheet PDF
Integrated Silicon Solution(ISSI)
SRAM Chip Async Single 5V 4M-bit 512K x 8 25ns 32Pin SOP T/R
IS61C5128AS-25HLI Datasheet PDF
Integrated Silicon Solution(ISSI)
SRAM Chip Async Single 5V 4M-Bit 512K x 8 25ns 32Pin STSOP-I
IS61C5128AS-25TLI-TR Datasheet PDF
Integrated Silicon Solution(ISSI)
SRAM Chip Async Single 5V 4M-Bit 512K x 8 25ns 32Pin TSOP-II T/R
IS61C5128AS-25HLI-TR Datasheet PDF
Integrated Silicon Solution(ISSI)
SRAM Chip Async Single 5V 4M-Bit 512K x 8 25ns 32Pin STSOP-I T/R
IS61C5128AS-25TI Datasheet PDF
Integrated Silicon Solution(ISSI)
512K x 8 HIGH-SPEED CMOS STATIC RAM
