Part 3D Model

$ 2.837

ISL4241EIRZ Datasheet PDF - Intersil

Manufacturer:

Intersil

Category:

Interface ICs

Case Package:

QFN-32

Description:

RS-232Interface IC RS232 3V 3D/5R 15kV SHTDWN 32QFN IND

Pictures:

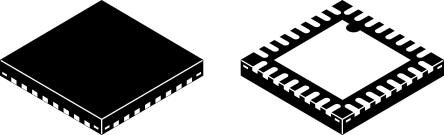

3D Model

Symbol

Footprint

Pinout

Product Pictures

ISL4241EIRZ Datasheet PDF (14 Pages)

View Datasheet

Click page to view the detail

ISL4241EIRZ Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

32 Pin

Supply Voltage (DC)

5.50 V, 5.50 V (max)

Case/Package

QFN-32

Supply Current

3.00 nA

Data Rate

250 kbps

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Supply Voltage

2.7V ~ 5.5V

Supply Voltage (Max)

5.5 V

Supply Voltage (Min)

2.7 V

ISL4241EIRZ Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

5 mm

Size-Width

5 mm

Size-Height

0.95 mm

Operating Temperature

-40℃ ~ 85℃

ISL4241EIRZ Environmental

ISL4241EIRZ Documents

ISL4241EIRZ Other Datasheet PDF

Intersil

14 Pages / 0.63 MByte

ISL4241EIRZ Packaging

Intersil

14 Pages / 0.26 MByte

ISL4241 Documents

ISL4241EIRZ Datasheet PDF

Intersil

RS-232Interface IC RS232 3V 3D/5R 15kV SHTDWN 32QFN IND

ISL4241EIRZ-T Datasheet PDF

Intersil

QFN Packaged, ±15kV ESD Protected, 2.7V to 5.5V, 10Nanoamp, 250kbps, 2.7V to 5.5V, 10Nanoamp, 250kbps,

ISL4241EIR Datasheet PDF

Intersil

QFN Packaged, +/-15kV ESD Protected, +2.7V to +5.5V, 10Nanoamp, 250kbps, RS-232 Transmitters/Receivers

ISL4241EIRZ Datasheet PDF

Renesas Electronics

Pb-Free RS232 3V 3D/5R 15kV SHUTDOWN 32QFN IND HT SUSA CODE:8542390000

ISL4241EIR-T Datasheet PDF

Intersil

QFN Packaged, ±15kV ESD Protected, 2.7V to 5.5V, 10Nanoamp, 250kbps, 2.7V to 5.5V, 10Nanoamp, 250kbps,

ISL4241EIRZ-T Datasheet PDF

Renesas Electronics

Triple Transmitter Quint Receiver RS-232 32-Pin QFN EP T/R

ISL4241EIR Datasheet PDF

Renesas Electronics

QFN Packaged, Â±15kV ESD Protected, 2.7V to 5.5V, 10Nanoamp, 250kbps, RS-232 Transmitters/Receivers

ISL4241E Datasheet PDF

Intersil

QFN Packaged, ±15kV ESD Protected, 2.7V to 5.5V, 10Nanoamp, 250kbps, 2.7V to 5.5V, 10Nanoamp, 250kbps,

ISL4241EIR-T Datasheet PDF

Renesas Electronics

QFN Packaged, Â±15kV ESD Protected, 2.7V to 5.5V, 10Nanoamp, 250kbps, RS-232 Transmitters/Receivers
