IXFH26N50P3
$ 4.959

IXFH26N50P3 Datasheet PDF - IXYS Semiconductor

Manufacturer:
IXYS Semiconductor
Category:
MOSFETs
Case Package:
TO-247-3
Description:
TO-247AD N-CH 500V 26A
Pictures:
3D Model
Symbol
Footprint
Pinout

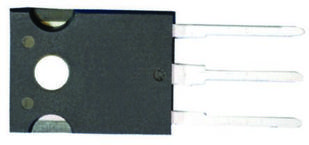

Product Pictures
Documentation:
IXFH26N50P3 Datasheet (6 Pages)
IXFH26N50P3 Datasheet PDF (6 Pages)
View Datasheet
Click page to view the detail

IXFH26N50P3 Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
3 Pin
Case/Package
TO-247-3
Number of Channels
1 Channel
Number of Positions
3 Position
Drain to Source Resistance (on) (Rds)
240 mΩ
Polarity
N-CH
Power Dissipation
500 W
Threshold Voltage
5 V
Drain to Source Voltage (Vds)
500 V
Breakdown Voltage (Drain to Source)
500 V
Continuous Drain Current (Ids)
26A
Rise Time
7 ns
Input Capacitance (Ciss)
2220pF @25V(Vds)
Fall Time
5 ns
Operating Temperature (Max)
150 ℃
Operating Temperature (Min)
-55 ℃
Power Dissipation (Max)
500W (Tc)
View Datasheet >

IXFH26N50P3 Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tube
Size-Length
16.26 mm
Size-Width
5.3 mm
Size-Height
21.46 mm
Operating Temperature
-55℃ ~ 150℃ (TJ)
View Datasheet >

IXFH26N50P3 Documents

IXFH26N50P3 Datasheet
IXYS Semiconductor
6 Pages / 0.15 MByte
IXFH26N50P3 Other Datasheet PDF
IXYS Semiconductor
6 Pages / 0.14 MByte

IXFH26N50 Documents

IXFH26N50 Datasheet PDF
IXYS Semiconductor
Trans MOSFET N-CH 500V 26A 3Pin(3+Tab) TO-247AD
IXFH26N50Q Datasheet PDF
IXYS Semiconductor
TO-247AD N-CH 500V 26A
IXFH26N50P Datasheet PDF
IXYS Semiconductor
TO-247 N-CH 500V 26A
IXFH26N50P3 Datasheet PDF
IXYS Semiconductor
TO-247AD N-CH 500V 26A
