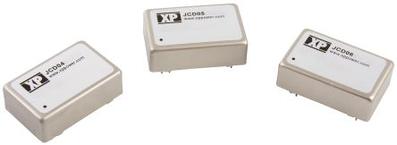

JCD0412S3V3 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Case Package:

DIP-24

Description:

Isolated Board Mount DC-DC Converter, 2:1Input, 1 Output, 4W, 3.3V, 1.2A

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

JCD0412S3V3 Datasheet (4 Pages)

JCD0412S3V3 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

JCD0412S3V3 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Supply Voltage (DC)

12.0 V

Case/Package

DIP-24

Power Rating

4 W

Number of Outputs

1 Output

Input Voltage (DC)

9.00V ~ 18.0V

Output Voltage

3.3 VDC

Output Current

1.2 A

Output Power

4 W

Isolation Voltage

1.6 kV

Input Voltage (Max)

18 V

Input Voltage (Min)

9 V

Input Voltage (DC Max)

18 V

Input Voltage (DC Min)

9 v

Output Current (Max)

1.2 A

Input Current (Min)

30mA(No Load), 445mA(Full Load)

Input Power (Max)

4 W

Input Voltage

9VDC ~ 18VDC

View Datasheet >

JCD0412S3V3 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

31.75 mm

Size-Width

20.32 mm

Size-Height

10.4 mm

Weight

18 g

Operating Temperature

-40℃ ~ 100℃

View Datasheet >

JCD0412S3V3 Environmental

JCD0412S3V3 Function Overview

JCD0412S3V3 Documents

JCD0412S3V3 Datasheet

XP Power

4 Pages / 0.19 MByte

JCD0412S3 Documents

JCD0412S3V3 Datasheet PDF

XP Power

Isolated Board Mount DC-DC Converter, 2:1Input, 1 Output, 4W, 3.3V, 1.2A

Part Datasheet PDF Search
