JCD0505D12 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Case Package:

DIP-24

Description:

XP POWER JCD0505D12 Isolated Board Mount DC-DC Converter, 2:1Input, Fixed, 2 Output, 4.5V, 9V, 5W, 12V

Pictures:

3D Model

Symbol

Footprint

Pinout

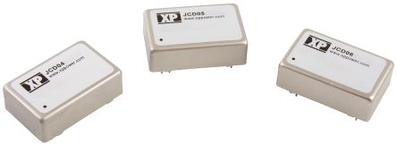

Product Pictures

Documentation:

JCD0505D12 Datasheet (4 Pages)

JCD0505D12 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

JCD0505D12 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Supply Voltage (DC)

5.00 V

Case/Package

DIP-24

Power Rating

5 W

Number of Outputs

2 Output

Input Voltage (DC)

4.50V ~ 9.00V

Output Voltage

12 VDC

Output Current

208 mA

Output Power

5 W

Isolation Voltage

1.6 kV

Input Voltage (Max)

9 V

Input Voltage (Min)

4.5 V

Input Voltage (DC Max)

9 V

Input Voltage (DC Min)

4.5 v

Output Current (Max)

208 mA

Input Current (Min)

1.217A(Full Load), 35mA(No Load)

Input Power (Max)

5 W

Supply Voltage

5 V

Input Voltage

4.5VDC ~ 9VDC

View Datasheet >

JCD0505D12 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

31.75 mm

Size-Width

20.32 mm

Size-Height

10.4 mm

Weight

18 g

Operating Temperature

-40℃ ~ 100℃

View Datasheet >

JCD0505D12 Environmental

JCD0505D12 Function Overview

JCD0505D12 Documents

JCD0505D12 Datasheet

XP Power

4 Pages / 0.19 MByte
