JCD0624D15 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Case Package:

DIP-24

Description:

Module DC-DC 24Vin 2Out 15V/-15V 0.2A/-0.2A 6W 8Pin DIP Module

Pictures:

3D Model

Symbol

Footprint

Pinout

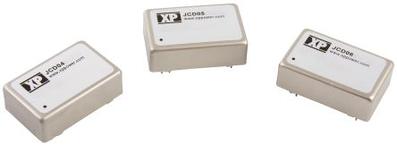

Product Pictures

Documentation:

JCD0624D15 Datasheet (4 Pages)

JCD0624D15 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

JCD0624D15 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

8 Pin

Supply Voltage (DC)

24.0 V

Case/Package

DIP-24

Power Rating

6 W

Number of Outputs

2 Output

Input Voltage (DC)

18.0V ~ 36.0V

Output Voltage

±15 VDC

Output Current

200 mA

Output Power

6 W

Isolation Voltage

1.6 kV

Input Voltage (Max)

36 V

Input Voltage (Min)

18 V

Input Voltage (DC Max)

36 V

Input Voltage (DC Min)

18 v

Output Current (Max)

200 mA

Input Current (Min)

20mA(No Load), 301mA(Full load)

Input Power (Max)

6 W

Input Voltage

18VDC ~ 36VDC

View Datasheet >

JCD0624D15 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Size-Length

31.75 mm

Size-Width

20.32 mm

Size-Height

10.4 mm

Weight

18 g

Operating Temperature

-40℃ ~ 100℃

View Datasheet >
