JHL0324S05 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Case Package:

DIP-24

Description:

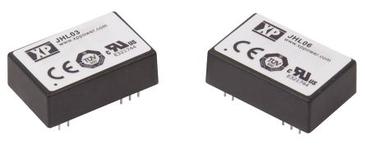

XP POWER JHL0324S05 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 1 Output, 20V, 30V, 3W, 5V

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

JHL0324S05 Datasheet (3 Pages)

Pinout Diagram on1 PageHot

JHL0324S05 Datasheet PDF (3 Pages)

View Datasheet

Click page to view the detail

JHL0324S05 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Case/Package

DIP-24

Power Rating

3 W

Number of Outputs

1 Output

Output Voltage

5 VDC

Output Current

600 mA

Output Power

3 W

Isolation Voltage

4 kV

Input Voltage (Max)

30 V

Input Voltage (Min)

20 V

Input Voltage (DC Max)

30 V

Input Voltage (DC Min)

20 v

Output Current (Max)

600 mA

Input Current (Min)

38mA(No Load), 167mA(Full Load)

Input Power (Max)

3 W

Input Voltage

20VDC ~ 30VDC

View Datasheet >

JHL0324S05 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

31.75 mm

Size-Width

20.32 mm

Size-Height

10.4 mm

Weight

20 g

Operating Temperature

-20℃ ~ 80℃

View Datasheet >

JHL0324S05 Environmental

JHL0324S05 Function Overview

JHL0324S05 Documents

JHL0324S05 Datasheet

XP Power

3 Pages / 0.4 MByte

JHL0324S05 Other Datasheet PDF

XP Power

3 Pages / 0.4 MByte

JHL0324 Documents

JHL0324D15 Datasheet PDF

XP Power

XP POWER JHL0324D15 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 2 Output, 20V, 30V, 3W, 15V

JHL0324D12 Datasheet PDF

XP Power

XP POWER JHL0324D12 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 2 Output, 20V, 30V, 3W, 12V

JHL0324S12 Datasheet PDF

XP Power

XP POWER JHL0324S12 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 1 Output, 20V, 30V, 3W, 12V

JHL0324S05 Datasheet PDF

XP Power

XP POWER JHL0324S05 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 1 Output, 20V, 30V, 3W, 5V

JHL0324S15 Datasheet PDF

XP Power

XP POWER JHL0324S15 Isolated Board Mount DC-DC Converter, Medical, Fixed, Adjustable, 1 Output, 20V, 30V, 3W, 15V
