JTB0324S3V3 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Description:

XP POWER JTB0324S3V3 Isolated Board Mount DC-DC Converter, Regulated, Fixed, 1 Output, 9V, 36V, 3W, 3.3V

Pictures:

3D Model

Symbol

Footprint

Pinout

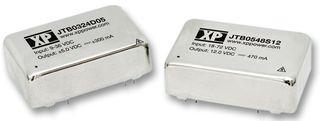

Product Pictures

Documentation:

JTB0324S3V3 Datasheet (2 Pages)

JTB0324S3V3 Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

JTB0324S3V3 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Supply Voltage (DC)

24.0 V

Power Rating

3.00 W

Number of Outputs

1 Output

Input Voltage (DC)

9.00V ~ 36.0V

Output Voltage

3.30 V

Output Current

600 mA

Isolation Voltage

500 V

Input Voltage (DC Max)

36 V

Input Voltage (DC Min)

9 v

Output Current (Max)

600 mA

Input Power (Max)

3 W

View Datasheet >

JTB0324S3V3 Environmental

JTB0324S3V3 Function Overview

JTB0324S3V3 Documents

JTB0324S3V3 Datasheet

XP Power

2 Pages / 0.24 MByte

JTB0324S3V3 Other Datasheet PDF

XP Power

3 Pages / 0.26 MByte

JTB0324S3 Documents

JTB0324S3V3 Datasheet PDF

XP Power

XP POWER JTB0324S3V3 Isolated Board Mount DC-DC Converter, Regulated, Fixed, 1 Output, 9V, 36V, 3W, 3.3V
