JTK3024S12 Datasheet PDF - XP Power

Manufacturer:

XP Power

Category:

DC/DC Converters

Case Package:

DIP-6

Description:

XP POWER JTK3024S12 Isolated Board Mount DC-DC Converter, Fixed, Adjustable, 1 Output, 9V, 36V, 30W, 12V

Pictures:

3D Model

Symbol

Footprint

Pinout

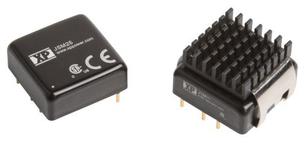

Product Pictures

Documentation:

JTK3024S12 Datasheet (4 Pages)

Pinout Diagram on1 Page 3 PageHot

JTK3024S12 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

JTK3024S12 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Case/Package

DIP-6

Power Rating

30 W

Number of Outputs

1 Output

Output Voltage

12 VDC

Output Current

2.5 A

Isolation Voltage

1.6 kV

Input Voltage (Max)

36 V

Input Voltage (Min)

9 V

Input Voltage (DC Max)

36 V

Input Voltage (DC Min)

9 v

Output Current (Max)

2.5 A

Input Current (Min)

1.405A(Full Load), 10mA(No Load)

Input Power (Max)

30 W

Input Voltage

9VDC ~ 36VDC

View Datasheet >

JTK3024S12 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Size-Length

25.4 mm

Size-Width

25 mm

Size-Height

10.9 mm

Weight

19 g

Operating Temperature

-40℃ ~ 100℃

View Datasheet >
