Part Datasheet Search > Inductor Surface Mount > muRata > LQW18AN6N2D00D Datasheet PDF
LQW18AN6N2D00D
Part 3D Model
$ 0.038

LQW18AN6N2D00D Datasheet PDF - muRata

Manufacturer:
muRata
Category:
Inductor Surface Mount
Case Package:
0603
Description:
0603 6.2nH ±0.5nH
Pictures:
3D Model
Symbol
Footprint
Pinout

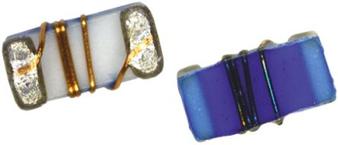

Product Pictures
Documentation:
LQW18AN6N2D00D Datasheet (2 Pages)
Part Numbering System on1 Page
LQW18AN6N2D00D Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

LQW18AN6N2D00D Specifications

TYPE
DESCRIPTION
Mounting Style
Surface Mount
Current Rating
750 mA
Case/Package (SI)
1608
Case/Package
0603
Inductance
6.2 nH
Self Resonant Frequency
6 GHz
Part Family
LQW
Shielding
No
Inductance Tolerance
±0.5 nH
Test Frequency
100 MHz
DC Resistance (DCR)
0.082 Ω
Current Rating (DC)
750 mA
Operating Temperature (Max)
125 ℃
Operating Temperature (Min)
-55 ℃
Resistance (DC Max)
0.082 Ω
View Datasheet >

LQW18AN6N2D00D Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Cut Tape (CT)
Size-Length
1.6 mm
Size-Width
0.8 mm
Size-Height
0.8 mm
Operating Temperature
-55℃ ~ 125℃
Minimum Packing Quantity
4000
View Datasheet >

LQW18AN6N2D00D Documents

LQW18AN6N2D00D Datasheet
muRata
2 Pages / 0.02 MByte
LQW18AN6N2D00D Other Datasheet PDF
muRata
2 Pages / 0.06 MByte
LQW18AN6N2D00D Product Catalog
muRata
249 Pages / 6.4 MByte
LQW18AN6N2D00D Other References
muRata
1 Pages / 0.15 MByte

LQW18AN6N2D00 Documents

LQW18AN6N2D00 Datasheet PDF
muRata
Chip Inductor (Chip Coil) for High Frequency Horizontal Wire Wound
LQW18AN6N2D00D Datasheet PDF
muRata
0603 6.2nH ±0.5nH
LQW18AN6N2D00J Datasheet PDF
muRata
0603 6.2nH ±0.5nH
