M80-5403442 Datasheet PDF - Harwin

Manufacturer:

Harwin

Category:

PCB Connector Pins

Description:

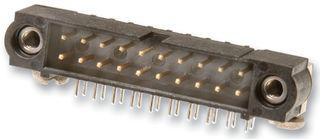

HARWIN M80-5403442 Wire-To-Board Connector, Dual in Line, 2mm, 34Contacts, Plug, Through Hole, 2Rows

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

M80-5403442 Datasheet (1 Pages)

M80-5403442 Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

M80-5403442 Specifications

TYPE

DESCRIPTION

Number of Contacts

34 Contact

Gender

Male

Mounting Style

Through Hole

Contact Plating

Gold

Current Rating

2.2A/触头

Insulation Resistance

100 MΩ

Number of Rows

2 Row

Pin Pitch

2.00 mm

Flammability Rating

UL 94 V-0

Number of Positions

34 Position

Contact Resistance

25.0 mΩ

Number of Mating Cycles

500 Cycle

Voltage Rating

800 V

View Datasheet >

M80-5403442 Environmental

M80-5403442 Function Overview

M80-5403442 Documents

M80-5403442 Datasheet

Harwin

1 Pages / 0.77 MByte

M80-5403442 Other Datasheet PDF

Harwin

1 Pages / 0.02 MByte

M80-5403442 Drawing Diagrams

Harwin

1 Pages / 0.08 MByte

M80-5403442 Features Description Parametrics

Harwin

15 Pages / 0.24 MByte

M80-5403442 Product Catalog

Harwin

92 Pages / 39.41 MByte
