MAL203856101E3 Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Single Capacitors

Case Package:

Radial, CAN

Description:

100uF ±20% 25V 190mA

Pictures:

3D Model

Symbol

Footprint

Pinout

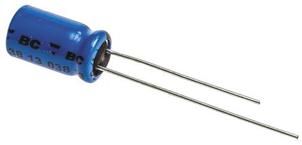

Product Pictures

Documentation:

MAL203856101E3 Datasheet (7 Pages)

MAL203856101E3 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

MAL203856101E3 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

25 V

Capacitance

100 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

2.5 mm

Part Family

038-RSU

Ripple Current

190 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

25 V

View Datasheet >

MAL203856101E3 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Size-Height

11 mm

Size-Diameter

6.3 mm

Operating Temperature

-40℃ ~ 85℃

Life (Hours)

2500 h

View Datasheet >

MAL203856101E3 Environmental

MAL203856101E3 Function Overview

MAL203856101E3 Documents

MAL203856101E3 Datasheet

VISHAY

7 Pages / 0.12 MByte

MAL203856101E3 Other Datasheet PDF

VISHAY

7 Pages / 0.12 MByte

MAL203856101 Documents

MAL203856101E3 Datasheet PDF

VISHAY

100uF ±20% 25V 190mA

MAL203856101E3 Datasheet PDF

Vishay Semiconductor

Cap Aluminum 100uF 25V 20% (6.3 X 11mm) Radial Aluminum Cylindrical Can 2.5mm 190mA 2500 hr 85℃ Bulk

MAL203856101E3 Datasheet PDF

Vishay BC Components

Cap Aluminum 100uF 25V 20% (6.3 X 11mm) Radial Aluminum Cylindrical Can 2.5mm 190mA 2500 hr 85℃ Bulk

MAL203856101E3 Datasheet PDF

Vishay Dale

100uF 25V dc ALUM Electrolytic Capacitor, 038 RSU Series 2500H 6.3(Dia.)x11mm
