MAL203856102E3 Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

1mF ±20% 25V 955mA

Pictures:

3D Model

Symbol

Footprint

Pinout

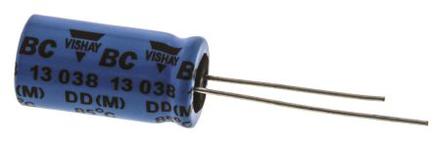

Product Pictures

Documentation:

MAL203856102E3 Datasheet (8 Pages)

MAL203856102E3 Datasheet PDF (8 Pages)

View Datasheet

Click page to view the detail

MAL203856102E3 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

25 V

Capacitance

1000 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

5 mm

Part Family

038-RSU

Ripple Current

955 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

25 V

View Datasheet >

MAL203856102E3 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Size-Height

20 mm

Size-Diameter

10 mm

Operating Temperature

-40℃ ~ 85℃

Life (Hours)

3500 h

View Datasheet >

MAL203856102E3 Environmental

MAL203856102E3 Function Overview

MAL203856102E3 Documents

MAL203856102E3 Datasheet

VISHAY

8 Pages / 0.12 MByte

MAL203856102 Documents

MAL203856102E3 Datasheet PDF

VISHAY

1mF ±20% 25V 955mA

MAL203856102E3 Datasheet PDF

Vishay Semiconductor

VISHAY MAL203856102E3 Aluminium Electrolytic Capacitor, 038 RSU Series, 1000F, - 20%, 25V, 10mm, Radial Leaded

MAL203856102E3 Datasheet PDF

Vishay BC Components

Aluminium Electrolytic Capacitor, 038 RSU Series, 1000F, - 20%, 25V, 10mm, Radial Leaded

MAL203856102E3 Datasheet PDF

Vishay Dale

1000uF 25V dc ALUM Electrolytic Capacitor, 038 RSU Series 3500H 10(Dia.)x20mm
