MAL204317479E3 Datasheet PDF - VISHAY

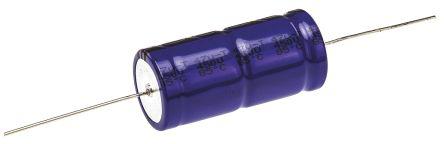

●The Vishay 043 ASH series are axial leaded, high voltage, standard aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 220µF. These capacitors are used in smoothing, filtering, buffering at high voltages, power supply and audio-video applications.

●222204317479

● Case size varies from 6.5mm x 18mm to 21mm x 38mm

● -10 to +50% tolerance

● Working voltage ranges from 160V to 450V

● Operating temperature range -40°C to +85°C

● Endurance is 2500hours to 8000hours at 85°C based on case size

● Miniaturized, high CV product per unit volume

● Charge and discharge proof

● Cylindrical aluminium case, insulated with a blue sleeve

● Low mounting height boards, vibration and shock resistant
