Part 3D Model

$ 0.034

MCH185A220JK Datasheet PDF - ROHM Semiconductor

Manufacturer:

ROHM Semiconductor

Category:

Ceramic Capacitors

Case Package:

0603

Description:

CAP CER 22pF 50V 5% NPO 0603

Pictures:

3D Model

Symbol

Footprint

Pinout

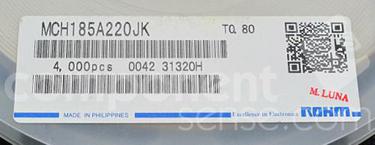

Product Pictures

Documentation:

MCH185A220JK Datasheet (10 Pages)

Package Outline Dimension on1 Page

MCH185A220JK Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

MCH185A220JK Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Voltage Rating (DC)

50.0 V

Capacitance

22 pF

Capacitance Tolerance

±5 %

Case/Package (SI)

1608

Case/Package

0603

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

MCH185A220JK Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Obsolete

Packaging

Cut Tape (CT)

Size-Length

1.6 mm

Size-Width

0.8 mm

Size-Height

0.8 mm

Operating Temperature

-55℃ ~ 125℃

Temperature Coefficient

±0.00 ppm/℃

View Datasheet >

MCH185A220JK Environmental

MCH185A220JK Function Overview

MCH185A220JK Documents

MCH185A220JK Datasheet

ROHM Semiconductor

10 Pages / 0.12 MByte

MCH185A220JK Other Datasheet PDF

ROHM Semiconductor

14 Pages / 0.18 MByte

MCH185A220 Documents

MCH185A220JK Datasheet PDF

ROHM Semiconductor

CAP CER 22pF 50V 5% NPO 0603
