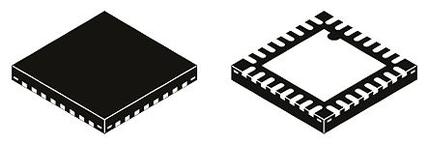

MK20DN32VFM5 Datasheet PDF - NXP

Manufacturer:

NXP

Category:

Microcontrollers

Case Package:

QFN-32

Description:

MCU 32Bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32Pin QFN EP Tray

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

MK20DN32VFM5 Datasheet (7 Pages)MK20DN32VFM5 User Reference Manual Guide (1209 Pages)

MK20DN32VFM5 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

MK20DN32VFM5 Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Frequency

50 MHz

Number of Pins

32 Pin

Supply Voltage (DC)

1.71V (min)

Case/Package

QFN-32

Halogen Free Status

Halogen Free

Number of Positions

32 Position

Clock Speed

50.0 MHz

RAM Memory Size

8 KB

Number of ADCs

1 ADC

Number of Inputs and Outputs

20 Input

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-40 ℃

Supply Voltage (Max)

3.6 V

Supply Voltage (Min)

1.71 V

View Datasheet >

MK20DN32VFM5 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tray

Size-Length

5 mm

Size-Width

5 mm

Size-Height

0.9 mm

Operating Temperature

-40℃ ~ 105℃

View Datasheet >

MK20DN32VFM5 Environmental

MK20DN32VFM5 Function Overview

MK20DN32VFM5 Documents

MK20DN32VFM5 Datasheet

NXP

7 Pages / 0.17 MByte

MK20DN32VFM5 User Reference Manual Guide

NXP

1209 Pages / 13.6 MByte

MK20DN32VFM5 Other Datasheet PDF

NXP

44 Pages / 1.64 MByte

MK20DN32VFM5 Features Description Parametrics

NXP

58 Pages / 1.98 MByte

MK20DN32VFM5 Notice File

NXP

5 Pages / 0.03 MByte

MK20DN32 Documents

MK20DN32VFM5 Datasheet PDF

NXP

MCU 32Bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32Pin QFN EP Tray

MK20DN32VLF5 Datasheet PDF

NXP

MCU 32Bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 48Pin LQFP Tray

MK20DN32VLH5 Datasheet PDF

NXP

MCU 32Bit ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 64Pin LQFP Tray

MK20DN32VFT5 Datasheet PDF

NXP

MCU 32Bit K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 48Pin QFN EP Tray

MK20DN32VMP5 Datasheet PDF

NXP

Kinetis K 32Bit MCU, ARM Cortex-M4 core, 32KB Flash, 50MHz, USB, MAPBGA 64

MK20DN32VLH5 Datasheet PDF

Freescale

MCU 32Bit Kinetis K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 64Pin LQFP Tray

MK20DN32VFT5 Datasheet PDF

Freescale

MCU 32Bit K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 48Pin QFN EP Tray

MK20DN32VFM5 Datasheet PDF

Freescale

MCU 32Bit Kinetis K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 32Pin QFN EP Tray

MK20DN32VLF5 Datasheet PDF

Freescale

MCU 32Bit Kinetis K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 48Pin LQFP Tray

MK20DN32VMP5 Datasheet PDF

Freescale

MCU 32Bit K20 ARM Cortex M4 RISC 32KB Flash 1.8V/2.5V/3.3V 64Pin MAP-BGA Tray
