MPJC2CA100U40 Datasheet PDF - MagnaChip

Manufacturer:

MagnaChip

Category:

Schottky Diodes

Case Package:

3DM-2NI

Description:

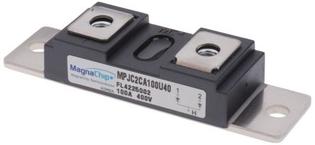

Diode Switching 400V 200A 2Pin Case 3DM-2NI

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

MPJC2CA100U40 Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

MPJC2CA100U40 Specifications

TYPE

DESCRIPTION

Mounting Style

Panel

Number of Pins

2 Pin

Case/Package

3DM-2NI

Reverse recovery time

50 ns

Max Forward Surge Current (Ifsm)

2 kA

Maximum Forward Voltage (Max)

1.3 V

Forward Current (Max)

200 A

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

480000 mW

MPJC2CA100U40 Size & Package

TYPE

DESCRIPTION

Size-Length

92 mm

Size-Width

27 mm

Size-Height

16.3 mm

MPJC2CA100U40 Environmental

MPJC2CA100U40 Documents

MPJC2CA100U40 Other Datasheet PDF

MagnaChip

5 Pages / 0.57 MByte

MPJC2CA100 Documents

MPJC2CA100U40 Datasheet PDF

MagnaChip

Diode Switching 400V 200A 2Pin Case 3DM-2NI
