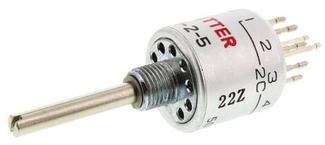

MR 2-5 Datasheet PDF - Knitter-Switch

Manufacturer:

Knitter-Switch

Category:

Rotary Switches

Description:

Switch Rotary DP5T 5 Extended Shaft Turret 0.5A 125VAC 24VDC Miniature

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

MR 2-5 Datasheet (6 Pages)

MR 2-5 Datasheet PDF (6 Pages)

View Datasheet

Click page to view the detail

MR 2-5 Specifications

TYPE

DESCRIPTION

Number of Contacts

2 Contact

Insulation Resistance

100 MΩ

Number of Circuits

5 Circuit

Number of Positions

5 Position

Contact Current Rating

500mA @24VDC

Current Rating (Max)

0.5A @125VAC, 24VDC

Operating Temperature (Max)

110 ℃

Operating Temperature (Min)

-45 ℃

Voltage Rating

24VDC, 125VAC

Maximum Contact Resistance (Max)

10 mΩ

View Datasheet >

MR 2-5 Environmental

MR 2-5 Documents

MR 2-5 Datasheet

Knitter-Switch

6 Pages / 0.97 MByte
