NTE15020 Datasheet PDF - NTE Electronics

Manufacturer:

NTE Electronics

Category:

Voltage Regulators

Case Package:

SIP

Description:

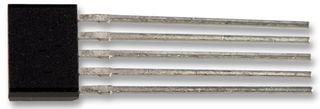

NTE ELECTRONICS NTE15020 Linear Voltage Regulator, Fixed, 120V to 200V input, 125V/1A out, SIP-5

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

NTE15020 Datasheet (2 Pages)

NTE15020 Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

NTE15020 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

5 Pin

Case/Package

SIP

Number of Outputs

1 Output

Output Voltage

125 V

Output Current

1 A

Power Dissipation

40000 mW

Input Voltage (Max)

200 V

Input Voltage (Min)

120 V

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-30 ℃

Power Dissipation (Max)

40000 mW

View Datasheet >

NTE15020 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Each

Size-Height

21.2 mm

View Datasheet >

NTE15020 Environmental

NTE15020 Export Classifications

NTE15020 Documents

NTE15020 Datasheet

NTE Electronics

2 Pages / 0.02 MByte

NTE15020 Other Datasheet PDF

NTE Electronics

2 Pages / 0.02 MByte
