NTE2987 Datasheet PDF - NTE Electronics

Manufacturer:

NTE Electronics

Category:

MOSFETs

Case Package:

TO-220

Description:

TO-220 N-CH 100V 20A

Pictures:

3D Model

Symbol

Footprint

Pinout

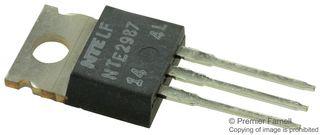

Product Pictures

Documentation:

NTE2987 Datasheet (3 Pages)

NTE2987 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

3 Pin

Case/Package

TO-220

Number of Channels

1 Channel

Number of Positions

3 Position

Drain to Source Resistance (on) (Rds)

0.09 Ω

Polarity

N-Channel

Power Dissipation

105 W

Threshold Voltage

1.6 V

Drain to Source Voltage (Vds)

100 V

Continuous Drain Current (Ids)

20A

Rise Time

140 ns

Input Capacitance (Ciss)

1200pF @25V(Vds)

Fall Time

80 ns

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-65 ℃

Power Dissipation (Max)

105000 mW

View Datasheet >

NTE2987 Environmental

NTE2987 Export Classifications

NTE2987 Documents

NTE2987 Datasheet

NTE Electronics

3 Pages / 0.03 MByte

NTE2987 Other Datasheet PDF

NTE Electronics

3 Pages / 0.05 MByte
