QS123XXG24 Datasheet PDF - Apem Components

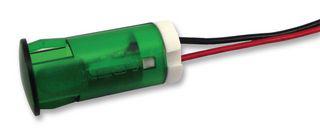

●The QS series snap-in panel-mount LED Indicator available in red, green, yellow, blue, orange, white (clear) colours. It is offers solder lug/Faston, 6mm (2 x 0.5mm), 8, 10, 12mm (2.8 x 0.8mm) or wires (200mm standard length) terminations. Standard wire length is 200mm, red wire denotes anode (+), black wire denotes cathode (-) (6mm and 8mm use 24AWG, 10mm and 12mm use 22AWG). Bicolour LEDs, by connecting the gold Faston (+) one colour is produced, by reversing the supply voltage another colour is produced - Bicolour are available up to 28VDC (AC products not available).

● Front panel snap-in mounting requires no additional hardware

● Coloured diffused flat lenses

● Standard intensity diffused LEDs or high brightness LEDs for daylight viewing

● Bicolour LED option

● UL496 recognised component

● Gold Faston terminal denotes anode (+), silver terminal denotes cathode (-)

● All 110VAC and 220VAC LED indicators will be supplied with high brightness LEDs

● Resistor-less versions (02)

● Flashing LEDs are available as a special option
