RPER71H105K3M1C07A Datasheet PDF - muRata

Manufacturer:

muRata

Category:

Ceramic Capacitors

Case Package:

Radial

Description:

1uF 50V X7R Φ5.0mm

Pictures:

3D Model

Symbol

Footprint

Pinout

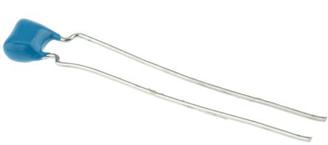

Product Pictures

Documentation:

RPER71H105K3M1C07A Datasheet (1 Pages)

RPER71H105K3M1C07A Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

RPER71H105K3M1C07A Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Voltage Rating (DC)

50 V

Capacitance

1 µF

Capacitance Tolerance

±10 %

Case/Package

Radial

Pin Pitch

5 mm

Dielectric Characteristic

X7R

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

50 V

View Datasheet >

RPER71H105K3M1C07A Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Obsolete

Material

X7R/-55℃~+125℃

Size-Length

5 mm

Size-Width

3.15 mm

Size-Height

4.5 mm

Size-Diameter

Φ5.0mm

Operating Temperature

-55℃ ~ 125℃

Temperature Coefficient

±15 %

View Datasheet >

RPER71H105K3M1C07A Environmental

RPER71H105K3M1C07A Export Classifications

RPER71H105K3M1C07A Function Overview

RPER71H105K3M1C07A Documents

RPER71H105K3M1C07A Datasheet

muRata

1 Pages / 0.04 MByte

RPER71H105K3M1C07A Other Datasheet PDF

muRata

54 Pages / 1.49 MByte

RPER71H105K3M1C07 Documents

RPER71H105K3M1C07A Datasheet PDF

muRata

1uF 50V X7R Φ5.0mm
