SACC-M12MS-4CON-PG 7-M Datasheet PDF - Phoenix

Manufacturer:

Phoenix

Category:

Connectors

Description:

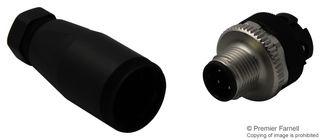

Connector, 4Position, Plug straight M12, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, Cable gland Pg7, External cable diameter 4mm ... 6mm

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

SACC-M12MS-4CON-PG 7-M Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

SACC-M12MS-4CON-PG 7-M Specifications

TYPE

DESCRIPTION

Number of Contacts

4 Contact

Gender

Male

Mounting Style

Screw

Voltage Rating (DC)

250 V

Current Rating

4 A

Insulation Resistance

100 MΩ

Number of Mating Cycles

100 Cycle

Current Rating (Max)

4 A

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating (Max)

250 V

Voltage Rating

250 V
