SF2137E-1 Datasheet PDF - muRata

Manufacturer:

muRata

Category:

SAW Filter

Case Package:

SM3030-6

Description:

SAW Filter RF 869MHz Frequency 3.5dB 50Ω SMD 6Pin SM3030-6 T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

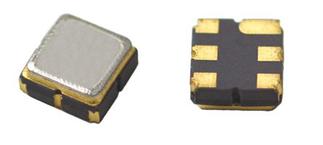

Product Pictures

Documentation:

SF2137E-1 Datasheet (5 Pages)

SF2137E-1 Datasheet PDF (5 Pages)

View Datasheet

Click page to view the detail

SF2137E-1 Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

6 Pin

Case/Package

SM3030-6

Operating Temperature (Max)

65 ℃

Operating Temperature (Min)

-30 ℃

View Datasheet >

SF2137E-1 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape & Reel (TR)

Size-Length

3.13 mm

Size-Height

1.4 mm

Operating Temperature

-30℃ ~ 65℃

View Datasheet >
