Part 3D Model

$ 0.365

SFH213-FA Datasheet PDF - Osram Opto

Manufacturer:

Osram Opto

Category:

Photodiodes

Case Package:

T-1

Description:

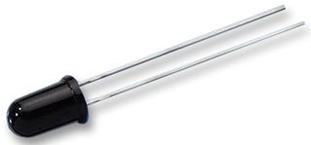

OSRAM SFH213-FA Photodiode, 10°, 1nA, 900nm, T-1 3/4 (5mm)

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

SFH213-FA Datasheet (9 Pages)

SFH213-FA Datasheet PDF (9 Pages)

View Datasheet

Click page to view the detail

SFH213-FA Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-1

Number of Positions

2 Position

Wavelength

900 nm

Peak Wavelength

850 nm

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-40 ℃

View Datasheet >

SFH213-FA Size & Package

TYPE

DESCRIPTION

Packaging

Each

Operating Temperature

-40℃ ~ 100℃

View Datasheet >

SFH213-FA Environmental

SFH213-FA Function Overview

SFH213-FA Documents

SFH213-FA Datasheet

Osram Opto

9 Pages / 0.39 MByte
