SFM-145-01-S-D Datasheet PDF - Samtec

Manufacturer:

Samtec

Category:

Wire to Board Connector

Description:

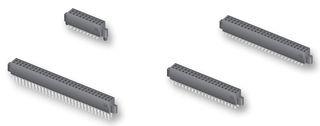

SAMTEC SFM-145-01-S-D Wire-To-Board Connector, 1.27mm, 90Contacts, Receptacle, SFM Series, Through Hole, 2Rows

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

SFM-145-01-S-D Datasheet (2 Pages)

SFM-145-01-S-D Datasheet PDF (2 Pages)

View Datasheet

Click page to view the detail

SFM-145-01-S-D Specifications

TYPE

DESCRIPTION

Number of Contacts

90 Contact

Gender

Female

Mounting Style

Through Hole

Contact Plating

Gold

Number of Rows

2 Row

Number of Mating Cycles

10000 Cycle

Current Rating (Max)

3.2A/触头

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating (Max)

250 VAC

Maximum Contact Resistance (Max)

15 mΩ

View Datasheet >

SFM-145-01-S-D Environmental

SFM-145-01-S-D Function Overview

SFM-145-01-S-D Documents

SFM-145-01-S-D Datasheet

Samtec

2 Pages / 0.59 MByte

SFM-145-01-S-D Other Datasheet PDF

Samtec

2 Pages / 1 MByte

SFM-145-01-S-D Drawing Diagrams

Samtec

1 Pages / 0.17 MByte

SFM14501 Documents

SFM-145-01-S-D Datasheet PDF

Samtec

SAMTEC SFM-145-01-S-D Wire-To-Board Connector, 1.27mm, 90Contacts, Receptacle, SFM Series, Through Hole, 2Rows

SFM-145-01-S-D-A Datasheet PDF

Samtec

SAMTEC SFM-145-01-S-D-A Wire-To-Board Connector, 1.27mm, 90Contacts, Receptacle, SFM Series, Through Hole, 2Rows

SFM-145-01-S-D-LC Datasheet PDF

Samtec

SAMTEC SFM-145-01-S-D-LC Wire-To-Board Connector, 1.27mm, 90Contacts, Receptacle, SFM Series, Through Hole, 2Rows

SFM-145-01-S-D-N Datasheet PDF

Samtec

.050" Tiger Eyeª High-Reliability Socket Strip

SFM-145-01-L-D-A Datasheet PDF

Samtec

Conn Socket Strip SKT 90POS 1.27mm Solder ST Thru-Hole

SFM-145-01-S-D-P Datasheet PDF

Samtec

Conn Socket Strip SKT 90POS 1.27mm Solder ST SMD

SFM-145-01-F-D-A Datasheet PDF

Samtec

Conn Socket Strip SKT 90 POS 1.27mm Solder ST SMD

SFM-145-01-L-D-LC Datasheet PDF

Samtec

.050" Tiger Eyeª High-Reliability Socket Strip
