SS24-E3/52T Datasheet PDF - Vishay Semiconductor

Manufacturer:

Vishay Semiconductor

Category:

Schottky Diodes

Case Package:

DO-214AA

Description:

DIODE 2A, 40V, SILICON, RECTIFIER DIODE, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2Pin, Rectifier Diode

Pictures:

3D Model

Symbol

Footprint

Pinout

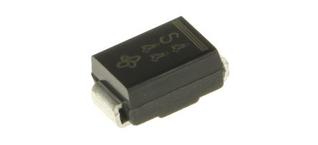

Product Pictures

Documentation:

SS24-E3/52T Datasheet (4 Pages)

Package Outline Dimension on3 Page

Package Footprint Pad Layout on3 Page

Part Numbering System on2 Page

SS24-E3/52T Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

SS24-E3/52T Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

2 Pin

Voltage Rating (DC)

40.0 V

Current Rating

2 A

Case/Package

DO-214AA

Output Current

2 A

Load Current

2 A

Number of Positions

2 Position

Forward Voltage

0.5 V

Polarity

Standard

Forward Current

2 A

Max Forward Surge Current (Ifsm)

75 A

Maximum Forward Voltage (Max)

500 mV

Forward Current (Max)

2 A

Operating Temperature (Max)

125 ℃

Operating Temperature (Min)

-65 ℃

Junction Temperature (Max)

125 ℃

View Datasheet >

SS24-E3/52T Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Each

Size-Length

4.7 mm

Size-Width

3.8 mm

Size-Height

2.42 mm

Operating Temperature

-65℃ ~ 125℃

View Datasheet >

SS24-E3/52T Environmental

SS24-E3/52T Export Classifications

SS24-E3/52T Function Overview

SS24-E3/52T Documents

SS24-E3/52T Datasheet

Vishay Semiconductor

4 Pages / 0.09 MByte

SS24-E3/52T Other Datasheet PDF

Vishay Semiconductor

7 Pages / 0.28 MByte

SS24-E3/52T Product Catalog

Vishay Semiconductor

4 Pages / 0.34 MByte

SS24-E3/52T Other References

Vishay Semiconductor

1 Pages / 0.13 MByte

SS24E352 Documents

SS24-E3/52 Datasheet PDF

VISHAY

SS24-E3/52T Datasheet PDF

VISHAY

SS24-E3/52T, SMT Schottky Diode, 40V 2A, 2Pin DO-214AA

SS24-E3/52T Datasheet PDF

Vishay Semiconductor

DIODE 2A, 40V, SILICON, RECTIFIER DIODE, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2Pin, Rectifier Diode

SS24E352T Datasheet PDF

Vishay Semiconductor

Diode Schottky 40V 2A 2Pin SMB T/R

SS24-E3/52T Datasheet PDF

LiteOn

SS24-E3/52T Datasheet PDF

Vishay Intertechnology

SS24-E3-52T Datasheet PDF

Vishay Semiconductor

Surface Mount Schottky Barrier Rectifier
