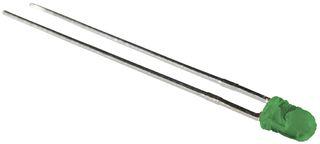

SSL-LX3044GD Datasheet PDF - Lumex

Manufacturer:

Lumex

Category:

Based LEDs

Case Package:

T-1

Description:

LED; PCB; Green; 80mcd; T3mm; 20mA; 2.1V; 605nm; 30deg; GaAsP; Diffused; 5V; -55℃

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

SSL-LX3044GD Datasheet (7 Pages)

Package Outline Dimension on7 Page

Package Footprint Pad Layout on7 Page

Part Numbering System on1 Page 7 Page

SSL-LX3044GD Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

SSL-LX3044GD Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-1

Forward Voltage

2.2 V

Wavelength

565 nm

Luminous Intensity

40 mcd

Viewing Angle

60°

Lens Type

Diffused

Peak Wavelength

565 nm

Power Dissipation

62.5 W

Test Current

20 mA

Forward Current

20 mA

Maximum Forward Voltage (Max)

2.5 V

Forward Current (Max)

30 mA

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-55 ℃

Power Dissipation (Max)

62.5 mW

View Datasheet >

SSL-LX3044GD Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Color

Green

Size-Height

4.60 mm

Size-Diameter

3.00 mm

Operating Temperature

-40℃ ~ 85℃

Lens Color

Green

View Datasheet >

SSL-LX3044GD Environmental

SSL-LX3044GD Export Classifications

SSL-LX3044GD Function Overview

SSL-LX3044GD Documents

SSL-LX3044GD Datasheet

Lumex

7 Pages / 0.16 MByte

SSL-LX3044GD Other Datasheet PDF

Lumex

1 Pages / 0.37 MByte

SSL-LX3044GD Drawing Diagrams

Lumex

1 Pages / 0.07 MByte

SSL-LX3044GD Other References

Lumex

1 Pages / 0.15 MByte
