SSN1N45BTA Datasheet PDF - Fairchild

Manufacturer:

Fairchild

Category:

MOSFETs

Case Package:

TO-92-3

Description:

Trans MOSFET N-CH 450V 0.5A 3Pin TO-92 Ammo

Pictures:

3D Model

Symbol

Footprint

Pinout

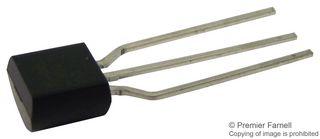

Product Pictures

Documentation:

SSN1N45BTA Datasheet (8 Pages)

Package Outline Dimension on7 Page

Part Numbering System on2 Page

SSN1N45BTA Datasheet PDF (8 Pages)

View Datasheet

Click page to view the detail

SSN1N45BTA Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

3 Pin

Voltage Rating (DC)

450 V

Current Rating

500 mA

Case/Package

TO-92-3

Number of Positions

3 Position

Drain to Source Resistance (on) (Rds)

3.4 Ω

Polarity

N-Channel

Power Dissipation

900 mW

Threshold Voltage

3 V

Drain to Source Voltage (Vds)

450 V

Breakdown Voltage (Drain to Source)

450 V

Breakdown Voltage (Gate to Source)

±50.0 V

Continuous Drain Current (Ids)

500 mA

Rise Time

21 ns

Input Capacitance (Ciss)

240pF @25V(Vds)

Input Power (Max)

900 mW

Fall Time

36 ns

Operating Temperature (Max)

150 ℃

Operating Temperature (Min)

-55 ℃

Power Dissipation (Max)

900mW (Ta)

View Datasheet >

SSN1N45BTA Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape

Size-Height

5.33 mm

Operating Temperature

-55℃ ~ 150℃ (TJ)

View Datasheet >
