STF7N52DK3 Datasheet PDF - ST Microelectronics

Manufacturer:

ST Microelectronics

Category:

MOSFETs

Case Package:

TO-220-3

Description:

Trans MOSFET N-CH 525V 6A 3Pin(3+Tab) TO-220FP Tube

Pictures:

3D Model

Symbol

Footprint

Pinout

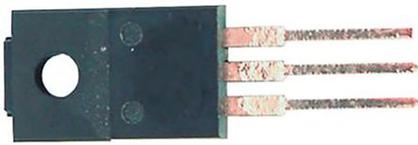

Product Pictures

Documentation:

STF7N52DK3 Datasheet (16 Pages)

Package Outline Dimension on10 Page 11 Page 12 Page 13 Page 14 Page

STF7N52DK3 Datasheet PDF (16 Pages)

View Datasheet

Click page to view the detail

STF7N52DK3 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

3 Pin

Case/Package

TO-220-3

Number of Channels

1 Channel

Drain to Source Resistance (on) (Rds)

0.95 Ω

Polarity

N-Channel

Power Dissipation

25 W

Threshold Voltage

3.75 V

Drain to Source Voltage (Vds)

525 V

Breakdown Voltage (Drain to Source)

525 V

Rise Time

12 ns

Input Capacitance (Ciss)

870pF @50V(Vds)

Input Power (Max)

25 W

Fall Time

19 ns

Operating Temperature (Max)

150 ℃

Operating Temperature (Min)

-55 ℃

Power Dissipation (Max)

25W (Tc)

View Datasheet >

STF7N52DK3 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tube

Size-Length

10.4 mm

Size-Width

4.6 mm

Size-Height

16.4 mm

Operating Temperature

150℃ (TJ)

View Datasheet >

STF7N52DK3 Environmental

STF7N52DK3 Function Overview

STF7N52DK3 Documents

STF7N52DK3 Datasheet

ST Microelectronics

16 Pages / 0.91 MByte

STF7N52DK3 Packaging

ST Microelectronics

19 Pages / 0.41 MByte

STF7N52DK3 Notice File

ST Microelectronics

34 Pages / 0.79 MByte

STF7N52 Documents

STF7N52K3 Datasheet PDF

ST Microelectronics

Trans MOSFET N-CH 525V 6A 3Pin(3+Tab) TO-220FP Tube

STF7N52DK3 Datasheet PDF

ST Microelectronics

Trans MOSFET N-CH 525V 6A 3Pin(3+Tab) TO-220FP Tube
