TDCR1050M
$ 1.177

TDCR1050M Datasheet PDF - Vishay Semiconductor

Manufacturer:
Vishay Semiconductor
Category:
LED Character Displays & Modules
Case Package:
DIP-16
Description:

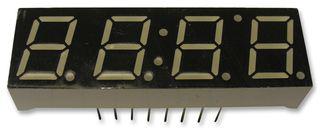

VISHAY TDCR1050M 7-Segment LED Display, Multiplex Mode, Red, 20mA, 2V, 6mcd, 4, 10mm
Pictures:
3D Model
Symbol
Footprint
Pinout
Product Pictures
Documentation:
TDCR1050M Datasheet (7 Pages)

TDCR1050M Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
16 Pin
Operating Voltage
2V ~ 2.4V
Case/Package
DIP-16
Forward Voltage
2 V
Wavelength
631 nm
Luminous Intensity
6 mcd
Peak Wavelength
631 nm
Power Dissipation
60 mW
Character Size-Height
10.0 mm
Test Current
20 mA
Forward Current
20 mA
Maximum Forward Voltage (Max)
2.4 V
Forward Current (Max)
25 mA
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Power Dissipation (Max)
60 mW
View Datasheet >

TDCR1050M Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Bulk
Color
Red
Size-Length
40.2 mm
Size-Width
1.583 in
Size-Height
7 mm
Operating Temperature
-40℃ ~ 85℃
Size-Thickness
7 mm
View Datasheet >

TDCR1050M Documents

TDCR1050M Datasheet
Vishay Semiconductor
7 Pages / 0.23 MByte
TDCR1050M Other Datasheet PDF
Vishay Semiconductor
7 Pages / 0.23 MByte
TDCR1050M Drawing Diagrams
Vishay Semiconductor
2 Pages / 0.06 MByte

TDCR1050 Documents

TDCR1050 Datasheet PDF
Vishay Semiconductor
Displays Segmented Panel 4DIGIT 30LED Sup. Red CA 34Pin DIP
TDCR1050 Datasheet PDF
VISHAY
LED Displays & Accessories 4-Dig Red 4.0-6mcd Common Anode
TDCR1050M Datasheet PDF
VISHAY
639nm 1500 ucd 4 Digit 10mm Red Common Cathode Clock Display - DIP-16
TDCR1050M Datasheet PDF
Vishay Semiconductor
VISHAY TDCR1050M 7-Segment LED Display, Multiplex Mode, Red, 20mA, 2V, 6mcd, 4, 10mm
