TK40J60U(F)
$ 8.546

TK40J60U(F) Datasheet PDF - Toshiba

Manufacturer:
Toshiba
Category:
MOSFETs
Case Package:
TO-3-3
Description:
TO-3PN N-CH 600V 40A
Pictures:
3D Model
Symbol
Footprint
Pinout

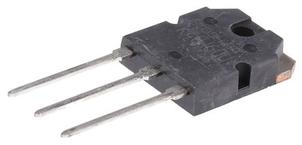

Product Pictures
Documentation:
TK40J60U(F) Datasheet (9 Pages)
Package Outline Dimension on8 Page
TK40J60U(F) Datasheet PDF (9 Pages)
View Datasheet
Click page to view the detail

TK40J60U(F) Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
3 Pin
Case/Package
TO-3-3
Number of Channels
1 Channel
Polarity
N-CH
Power Dissipation
320 W
Threshold Voltage
3V ~ 5V
Drain to Source Voltage (Vds)
600 V
Continuous Drain Current (Ids)
40A
Rise Time
60 ns
Input Capacitance (Ciss)
3400pF @10V(Vds)
Fall Time
13 ns
Operating Temperature (Max)
150 ℃
Operating Temperature (Min)
-55 ℃
Power Dissipation (Max)
320 W
View Datasheet >

TK40J60U(F) Size & Package

TYPE
DESCRIPTION
Packaging
Tube
Material
Silicon
Size-Length
15.5 mm
Size-Width
4.5 mm
Size-Height
20 mm
View Datasheet >

TK40J60U(F) Documents

TK40J60U(F) Datasheet
Toshiba
9 Pages / 0.23 MByte
TK40J60U(F) Other Datasheet PDF
Toshiba
9 Pages / 0.24 MByte

TK40J60 Documents

TK40J60U(F) Datasheet PDF
Toshiba
TO-3PN N-CH 600V 40A
TK40J60U Datasheet PDF
Toshiba
TO-3PN N-CH 600V 40A
TK40J60T(Q) Datasheet PDF
Toshiba
Trans MOSFET N-CH 600V 40A 3Pin(3+Tab) TO-3PN T/R
TK40J60T Datasheet PDF
Toshiba
TO-3PN N-CH 600V 40A
