$ 50.298

TVP00WCI1335P Datasheet PDF - Amphenol

Manufacturer:

Amphenol

Category:

Circular MIL Spec Connectors

Case Package:

throughHole

Description:

Circular MIL Spec Connector

Pictures:

3D Model

Symbol

Footprint

Pinout

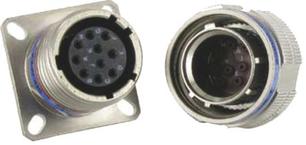

Product Pictures

TVP00WCI1335P Datasheet PDF (32 Pages)

View Datasheet

Click page to view the detail

TVP00WCI1335P Specifications

TYPE

DESCRIPTION

Number of Contacts

22 Contact

Gender

Female

Mounting Style

Panel, Solder

Contact Plating

Gold

Current Rating

3 A

Insulation Resistance

1000 MΩ

Case/Package

throughHole

Number of Positions

22 Position

Number of Mating Cycles

500 Cycle

Current Rating (Max)

5A/触头

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-65 ℃

Voltage Rating

400VAC, 550VDC

Maximum Contact Resistance (Max)

8 mΩ

TVP00WCI1335P Size & Package

TYPE

DESCRIPTION

Housing Color

Olive Drab

Color

Green

Contact Material

Copper Alloy

Size-Height

26.19 mm

Operating Temperature

-65℃ ~ 175℃

Housing Material

Aluminum

TVP00WCI1335P Environmental
